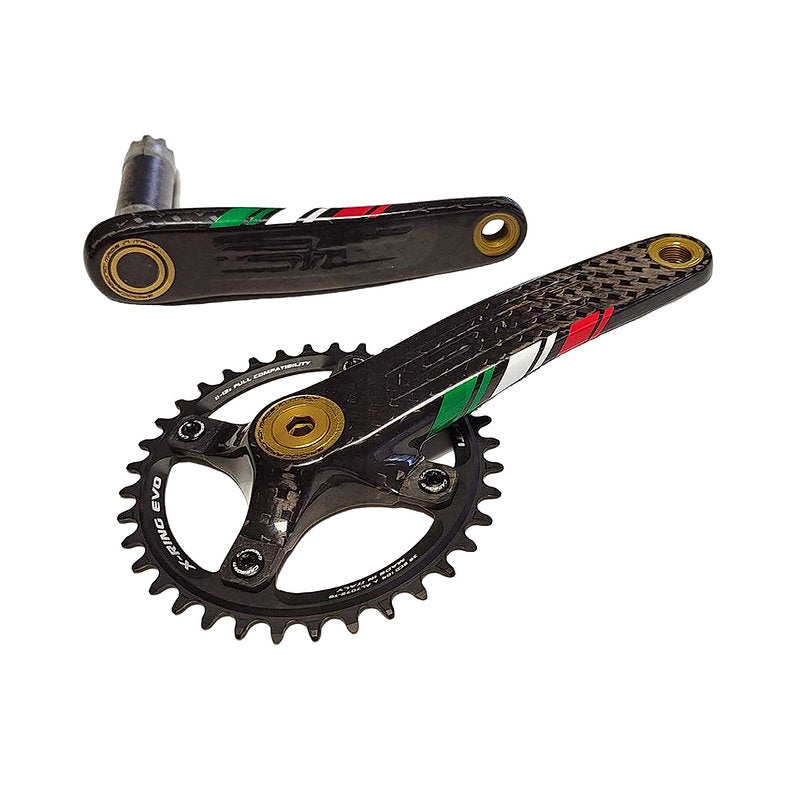

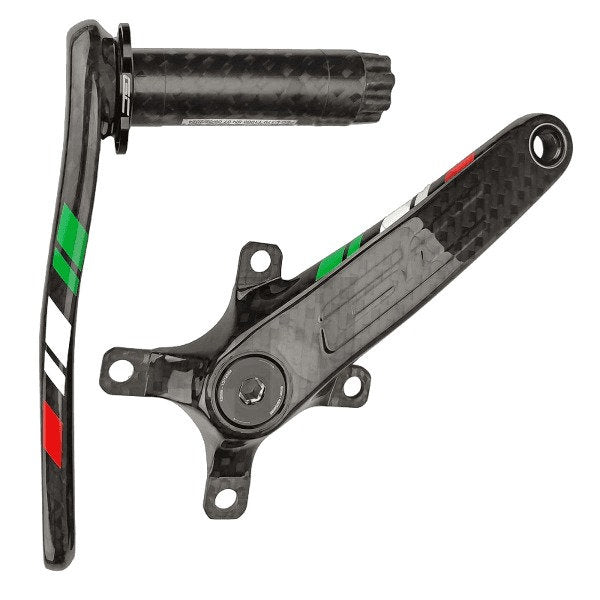

Starting from just 255 g, the GC MTB T1000 Carbon Crankset is engineered to be one of the lightest and most advanced MTB cranksets in the world, delivering an exceptional combination of low weight, stiffness, strength, and reliability.
Constructed entirely from high-quality T1000 carbon fiber, it features an optimized design and carefully selected materials to achieve outstanding performance without compromising durability.

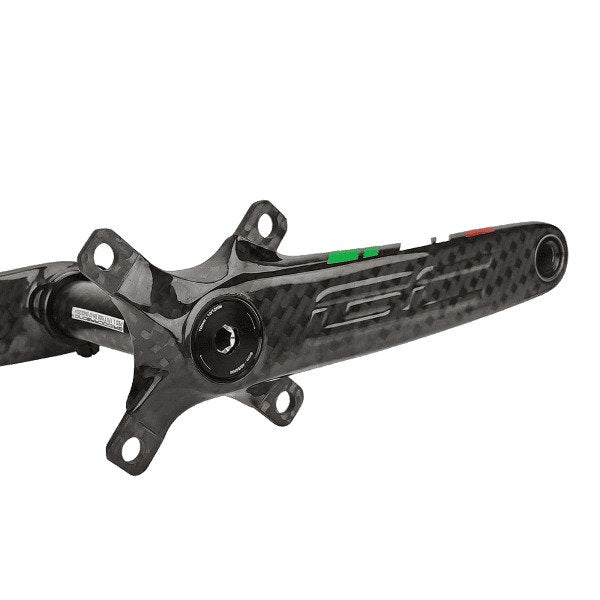

Its integrated 4-arm spider features a 104 mm BCD and is compatible with chainrings from 30T upwards, offering a versatile platform for high-performance MTB drivetrains. Chainrings are not included.
The oversized 30 mm axle is compatible with a wide range of bottom bracket standards and features an aluminum preload adjustment ring for precise installation and adjustment.
Available in three crank lengths:
Technical specifications:
-
Material: T1000 carbon fiber
-
Spider: Integrated 4-arm
-
Bolt circle diameter: 104 mm BCD
-
Chainring compatibility: 30T and larger
-
Axle diameter: Oversized 30 mm
-
Bottom bracket compatibility: BSA, BB30, PF30, BBright, Shimano PressFit, and other compatible standards
-
Preload adjustment: Aluminum adjustment ring
-
Q-factor: 174 mm
-
Chainline: 52 mm (Boost standard)
-

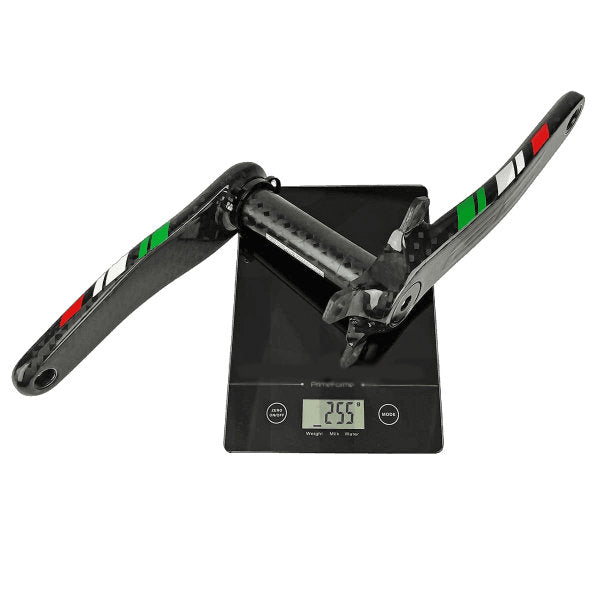

Starting weight: 255 g
-
No maximum rider weight
-
Chainrings not included
Available in two carbon finishes:
Custom finishes and decals
The carbon finish, decal color, and graphics can be customized to match your bike and personal style. For requests involving 12K Matte, 12K Gloss, or personalized decal graphics, please contact us via email before placing your order to discuss the available options and customization details.
100% Made in Italy.
